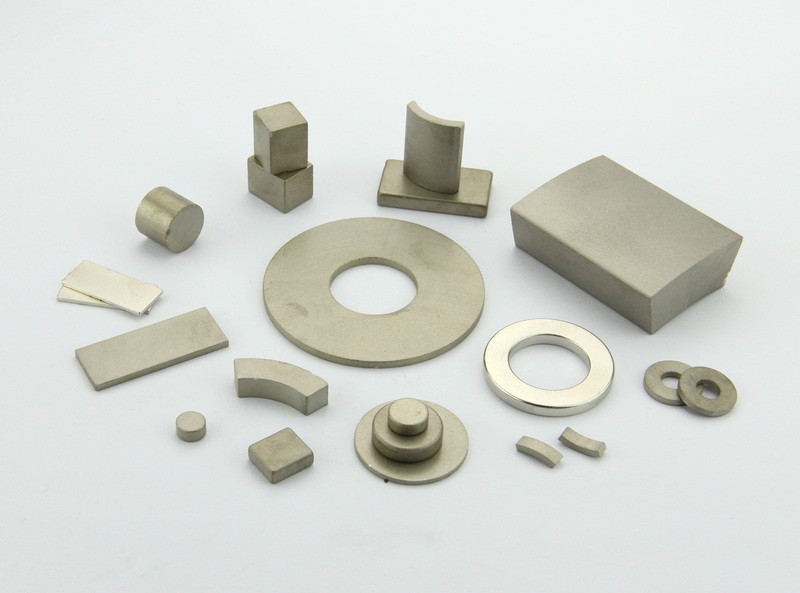

Samarium-Cobalt Magnet

Trade Terms: EXW,FOB Ningbo,CIF, Door to Door
Certificate: IATF16949, ISO9001:2015
Payment Terms: T/T
Delivery Time: 7-20 working days for samples /
20-30 working days for mass production
Main Transportation: Ocean, Air, Express Way
Min. Order: 100 Pieces

Samarium-cobalt (SmCo) magnets are a type of rare earth magnet renowned for their exceptional magnetic properties. Composed primarily of samarium and cobalt, these magnets possess remarkable strength and stability, making them highly sought after for various industrial and commercial applications.

Here's an introduction to SmCo magnets:

  • Composition: SmCo magnets are typically made of an alloy containing samarium (Sm) and cobalt (Co), along with traces of other elements such as iron, copper, and zirconium. The exact composition can vary depending on the desired magnetic properties and manufacturing process.

  • High Magnetic Strength: SmCo magnets are known for their high magnetic energy product (BHmax), which refers to the maximum amount of magnetic energy that can be stored in the magnet material. This property allows SmCo magnets to generate strong magnetic fields relative to their size and weight.

  • Temperature Stability: One of the key advantages of SmCo magnets is their exceptional performance over a wide range of temperatures. Unlike many other types of magnets, SmCo magnets can maintain their magnetic properties at high temperatures, with some grades capable of operating reliably at temperatures up to 300°C (572°F) or even higher.

  • Excellent Corrosion Resistance: SmCo magnets exhibit excellent resistance to corrosion and oxidation, making them suitable for use in challenging environments where exposure to moisture, chemicals, or other corrosive elements is a concern. This property enhances the longevity and reliability of SmCo magnets in various applications.

  • High Coercivity: SmCo magnets possess high coercivity, meaning they require significant external magnetic fields to demagnetize. This property ensures the stability and durability of the magnets' magnetic properties over time, making them ideal for applications where magnetic stability is critical.

  • Applications: SmCo magnets find applications in a wide range of industries, including aerospace, automotive, electronics, medical devices, and renewable energy. Common applications include magnetic sensors, motors, actuators, magnetic couplings, magnetic separators, and high-performance speakers.

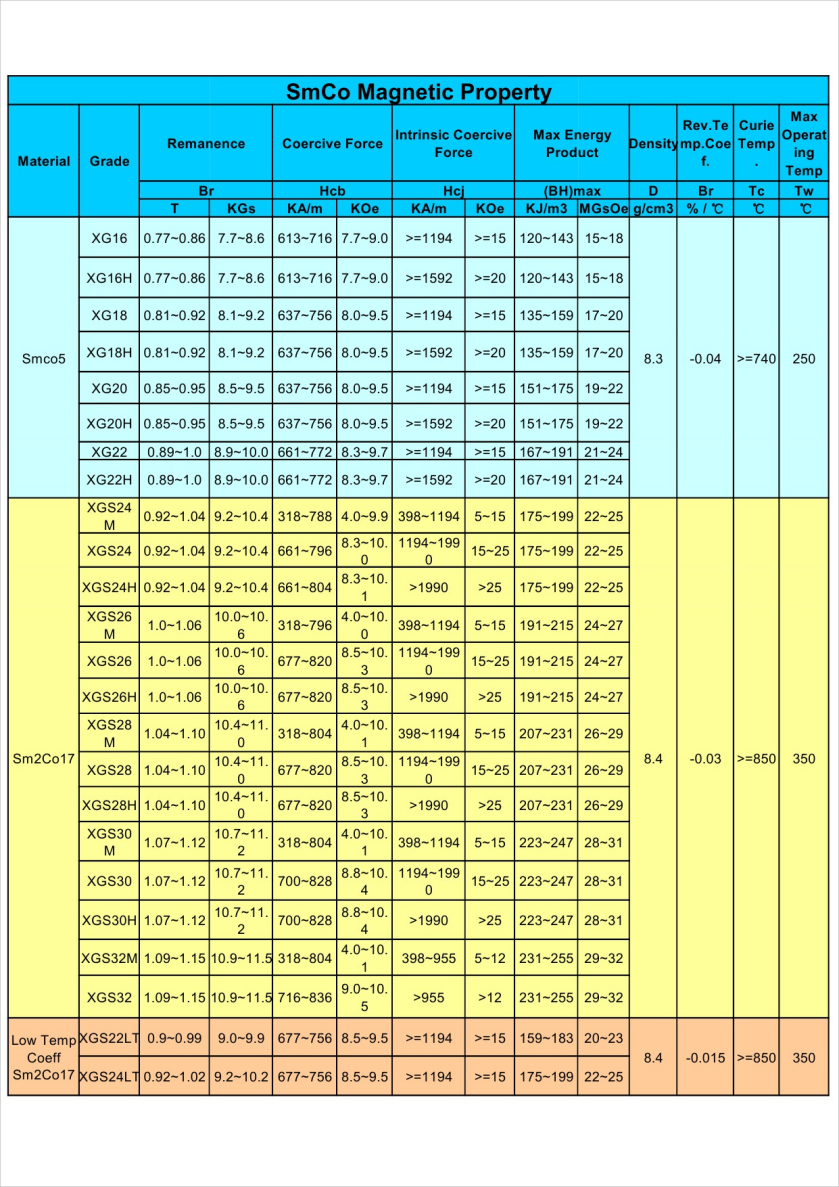

  • Grades and Varieties: SmCo magnets are available in various grades, each offering specific combinations of magnetic properties tailored to different application requirements. The most common grades are SmCo5 and Sm2Co17, distinguished by their different ratios of samarium to cobalt and other alloying elements.

Overall, SmCo magnets represent a significant advancement in permanent magnet technology, offering unparalleled strength, stability, and reliability for demanding applications across various industries. Their unique combination of properties makes them indispensable in situations where other types of magnets may fall short.
